Elegant design, impressive dimensions, and absolute uncompromising standards regarding materials and components form the basis for a monumental performance. In music reproduction beyond any doubt, the Larkmax Audio AMT 100X of the AMT Series represent the pinnacle of technical feasibility. Their imposing appearance allows this versatile transducer to dive into the deepest tonal ranges with almost limitless dynamics – yet the AMT 100X also invites you to indulge in very gentle melodies, which float sensitively and highly musically through the living space.
All of Larkmax AMT diaphragms are manufactured by a unique manufacturing process of our own development. The mixture of our basic diaphragm material was optimized with focus on its acoustic properties, hereafter the manufacturing process was tailored to ensure the very best acoustical result possible with every single diaphragm material mix.
Every detail of Larkmax diaphragm's geometry is based on a deep understanding of the mechanical requirements and physical properties of an AMT diaphragm. Only with this knowledge is it possible to achieve the perfect ratio of a low diaphragm weight, the highest possible diaphragm flexibility, and the most effective inner damping at a maximum of diaphragm stability. Even the slightest shift within this well-balanced ratio would lead to audibly worse results.

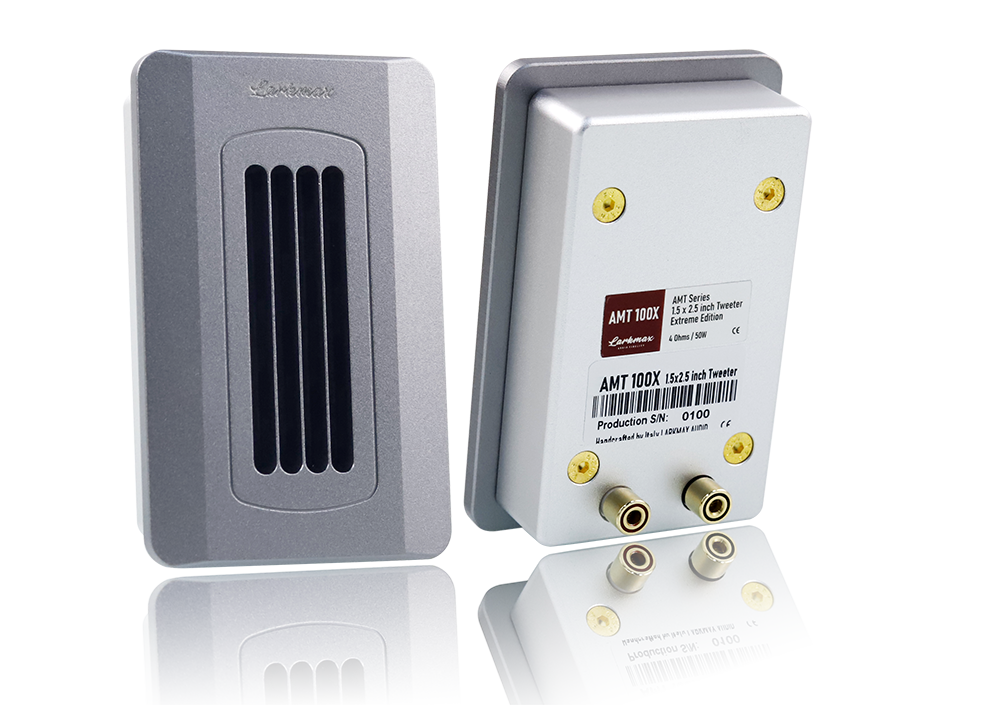

The AMT 100X is framed by an elaborately milled aluminum enclosure, which provides robust mechanical damping and minimizes unwanted resonance across the operating band. Electrically and acoustically, it delivers an exceptionally wide frequency response, making it equally suitable as a tweeter in two-way systems or as the high frequency driver in three-way configurations. Its high frequency extension reaches up to 40 kHz, enabling its use as a dedicated super tweeter for ultra-high frequency reproduction. With compact outer dimensions of just 84 × 53 mm, the unit offers flexible installation options, including A-pillar mounting or custom-molded enclosures for vehicle-specific or bespoke applications.
State-of-Art fold Ribbon tweeter for Studio Used
Thin enforced sandwich ribbon diaphragm
Wave-guide robust sandblasted aluminium front panel
Effective from 1,400Hz upwards due to the large diaphragm area and low self-resonance.
Low distortion, high linear frequency response and the broad frequency response range
Sandblasted plated rear cover
High-Flux Nd.45 neodymium magnet system
Golden Plated Terminal

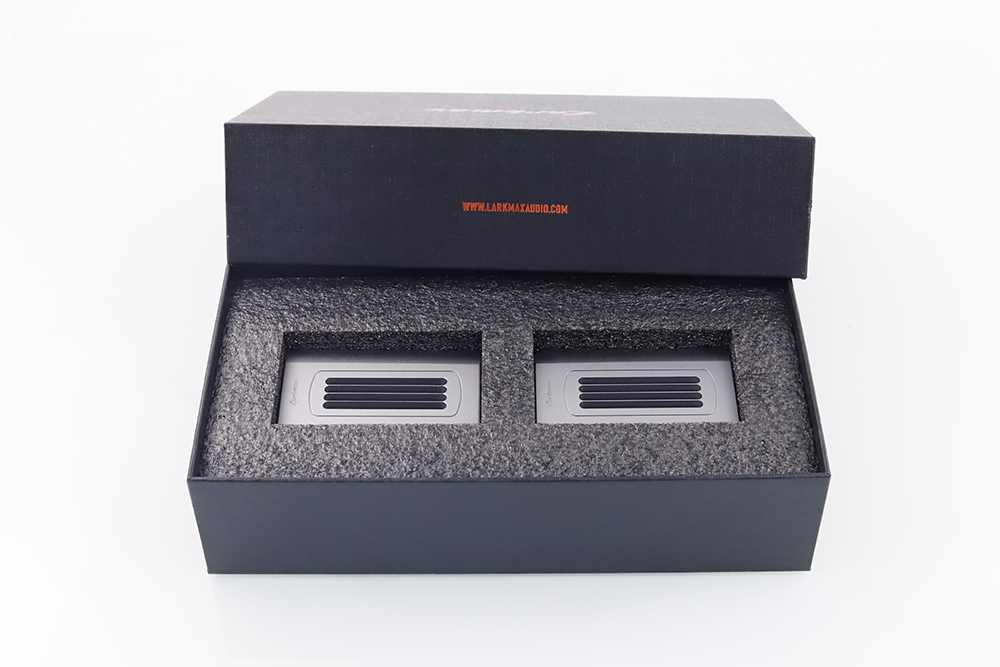

Matched pairs Production
Specifications
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 3.6 Ohms
Sensitivity (2,83 V / 1m) : 92.5 dB
Resonance Frequency (FS) : -
Frequency Response ( -6dB) : 1.4 kHz - 40 kHz
Crossover from (filter 12dB/6dB/Oct.): 2.6 kHz / 4.0 kHz
Nominal Frequency Range: 2.0 kHz - 40 kHz
Power Handling, long term: 30W
Power Handling, short term: 60W
Effective Piston Area: 35.1cm²
Total Weight: 0.42kg
